Hyperbaric Oxygen Chamber (Multi)

Hyperbaric Oxygen Chamber- M50 Multi Type

The air pressure inside a hyperbaric oxygen chamber is about two and a half times higher than

the normal pressure in the atmosphere. This helps your blood carry more oxygen to organs and

tissues in your body. Hyperbaric therapy can help wounds, especially infected wounds,

heal more quickly. The therapy may be used to treat:

 Air or gas embolism

 Bone infections (osteomyelitis) that have not improved with other treatments

 Burns

 Carbon monoxide poisoning

 Certain types of brain or sinus infections

 Decompression sickness (for example, a diving injury)

 Gas gangrene

 Necrotizing soft tissue infections

 Radiation injury (for example, damage from radiation therapy for cancer)

 Skin grafts

Wounds that have not healed with other treatments (for example, it may be used to treat a foot

ulcer in someone with diabetes or very bad circulation).This treatment may also be used to

provide enough oxygen to the lung during a procedure called whole lung lavage,

which is used to clean an entire lung in people with certain medical conditions.

This circumstance allows for oxygen to dissolve

and saturate the blood plasma and makes

oxygen can be reached all organs of the body. This increased flow of oxygen

stimulates and restores function to damaged

cells and organs

M50 Multi is built according to

CE certification of Class IIB medical device.

Easy to install and operate, Perfect for clinics, hospitals, therapy centers, professional sports centers, wellness salons,

also safe for home use.

<SPECIFICATION>

 MODEL M50 Multi

 Chamber

Usage Four Patient

Material Steel

Size/weight 2,543mm x 1,780mm

Normal pressure 1.1 ~ 1.5ATA

 System and Air Cooler

Air Volume 200 Liter /min

Voltage 220/110VAC, 50/60Hz

Power Consumption 950VA

Size/Weight 550(W)mm x 792(D)mm x 1,180(H)mm

Material Steel

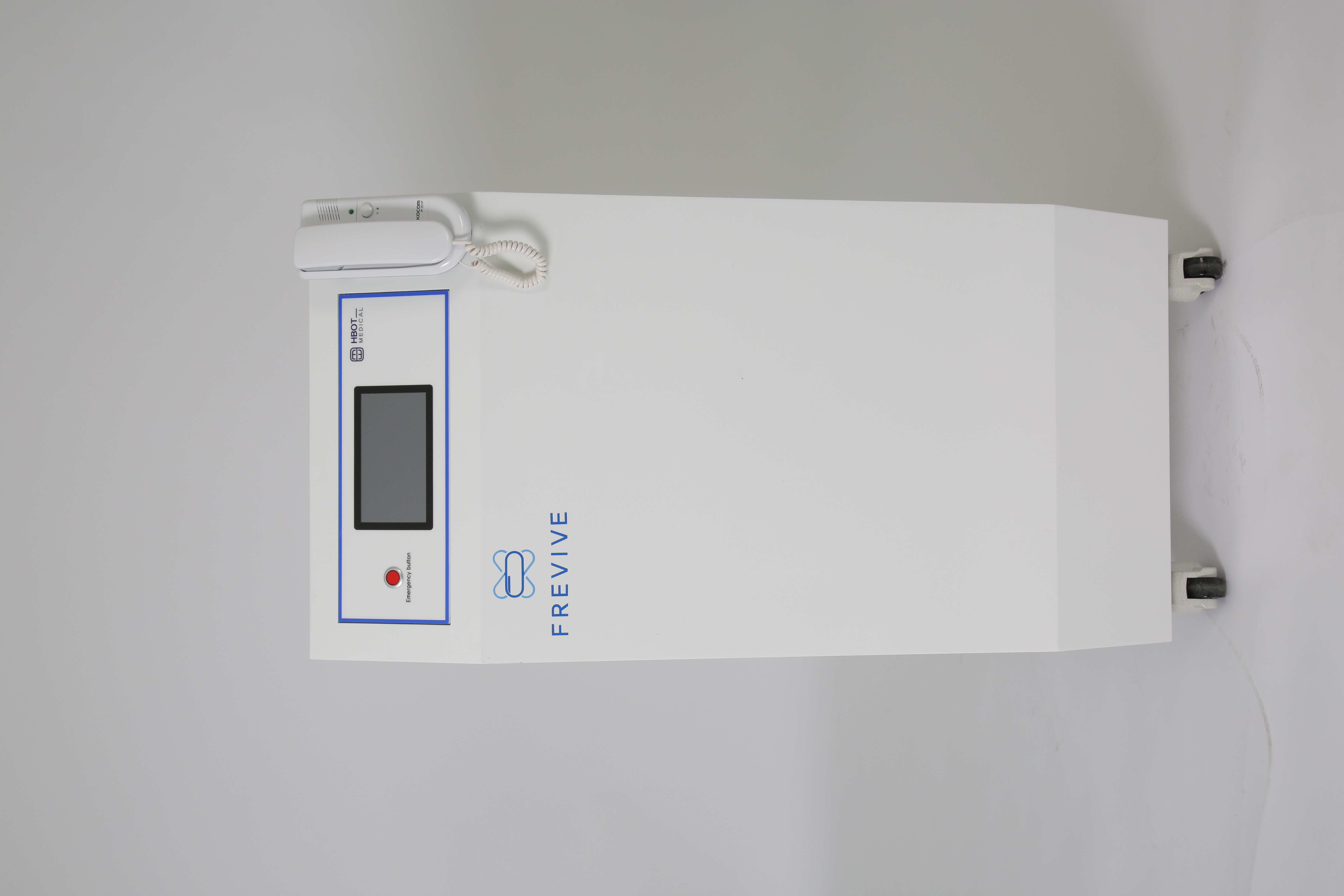

 Oxygen Generator

Oxygen Flow Rate 1~5L / Min

Oxygen Concentration 93% ± 3%

Voltage 220VAC, 50/60Hz

Power Consumption 270W

Noise Less than 45db

Size/Weight 400(W) x300(D) X 510(H)mm / 16.5Kg

 Inner Air Conditioner

Mini Air Conditioner is installed inside of Chamber
